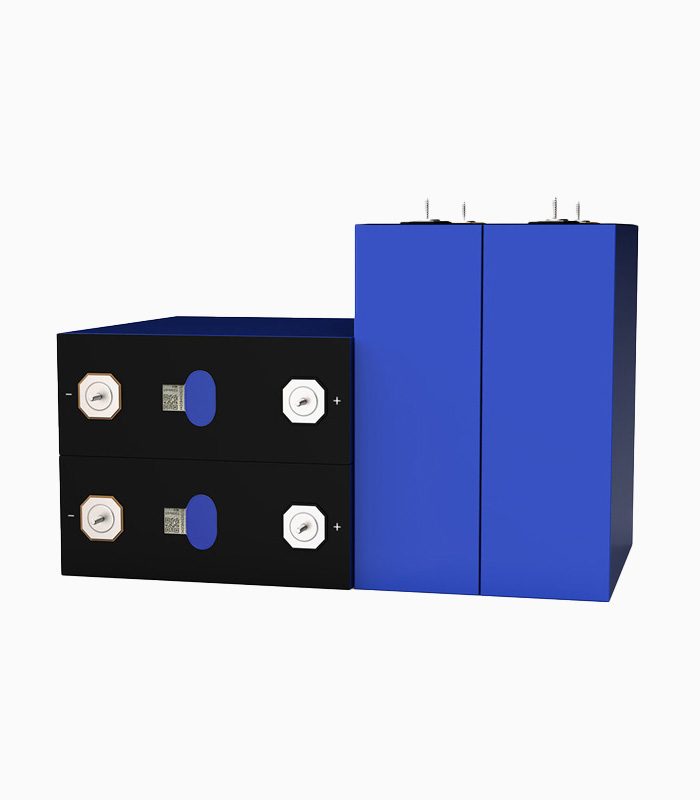

EVE 3.2V 280Ah LF280K LiFeP04 Prismatic Battery Cell
Suit for System: 12V 24V 48V 64V 72V 96V 108V 115V 288V.
Applicantion: RV /Vans /Campers /EV /Boats /Yacht /Golf Carts/ Forklift /Solar Battery/Solar Energy Storage System
To use in 48V system, you need 16pcs
To use in 24V system, you need 8pcs
To use in 12V system,you need 4pcs
Customized logo (Min. order: 200 pieces)
Customized packaging (Min. order: 200 pieces)
Graphic customization (Min. order: 200 pieces)
Delivery: 15 Days
OEM / ODM: Yes
Delivery Terms: FOB, EXW, CIF
Payment: T/T, L/C, PayPal
Air / Sea Freight: 10FT, 20FT, 40FT, 40FT HC, and 45FT
- High-Performance Battery Cell: Higher Capacity & Increased Reliability (Above 280Ah, Most Tests Exceed 300Ah). Improved Battery Management System (BMS) & Built-in Smart Monitoring
- Wide Operating Temperature Range: over 8000 charge cycles, greatly extending the battery’s lifespan. This means the battery performs reliably even under frequent charge and discharge cycles, making it ideal for long-term investments such as energy storage systems and electric vehicles (EVs).
- Customizable Options: As an ODM/OEM product, this battery cell can be customized to meet specific user requirements, such as the user’s application (boats, electric forklifts, electric vehicle communications energy storage intelligent network), making it a versatile and adaptable solution.
Specifications:
| Model Number | LF105 |
|---|---|
| Brand Name | EVE |
| Weight | 5.42+0.3kg |
| Place of Origin | GUA |
| Product name | 3.2v 280ah Lifepo4 Battery Cell |
| Nominal Energy | 896Wh |
| Operating Temperature | Discharge: -20-55°C, Charge: 0-55°C |
| Cycle life | ≥8000 cycles |
| Type | Life4po Battery |
| Voltage | 3.65v |
| Pulse charge / discharge (30s) | 0.5C/0.5C |
| Size | 204±0.5 × 173.9±0.5 × 72±0.5 MM |
| Certifications | UN38.3, IEC62619 |
Product descriptions
Introducing the Brand New EVE LF304K Grade A 3.2V 304Ah LiFePO4 Battery Cell — engineered for exceptional power, efficiency, and longevity. With a cycle life of over 8,000 cycles and actual capacity often exceeding 310Ah, this cell delivers consistent, high-performance energy storage for years to come.
Built for durability, each cell is professionally laser-welded by EVE, featuring double-hole terminals and nickel-plated copper busbars for optimal conductivity and corrosion protection.
Whether you’re building a solar energy system, off-grid setup, or EV power solution, the EVE LF304K ensures superior stability, reliability, and long-term value.
Experience trusted EVE quality — power that lasts over a decade. ⚡🔋
The Lifepo4 cell with the latest production date
| 3.2V Cell parameters | |||||||
| Battery Cell Name | Capacity (Ah) |
Battery Cell cycle (25℃) |
AC Impedance Resistance (1kHz) |
Weight (g) |
Height (mm) |
Width (mm) |
Thickness (mm) |
| 3.2V50AH | 50AH | 1500 (0.5C/0.5C) |
≤2.0mΩ | 1050±100 | 129.8±0.5 | 148.3±0.5 | 26.7±1.0 |
| 3.2V50AH | 50AH | 7000 (1C/1C) |
≤0.7mΩ | 1395±50 | 185.3±0.5 | 135.3±0.5 | 29.3±0.7 |
| 3.2V105AH | 105AH | 4000 (0.5C/0.5C) |
≤0.32mΩ | 1980±60 | 200.5±0.5 | 130.3±0.5 | 36.35±0.5 |
| 3.2V173AH | 173AH | 4000 (0.5C/0.5C) |
≤0.25mΩ | 3190±96 | 207.5±0.5 | 173.9±0.5 | 41.06±0.5 |
| 3.2V230AH | 230AH | 4000 (0.5C/0.5C) |
≤0.2mΩ | 4140±124 | 207.2±0.5 | 173.9±0.5 | 53.85±0.5 |
| 3.2V280AH | 280AH | 8000 (0.5C/0.5C) |
≤0.25mΩ | 5490±300 | 207.2±0.5 | 173.7±0.5 | 71.7±0.8 |
| 3.2V304AH | 304AH | 4000 (0.5C/0.5C) |
≤0.16mΩ | 5450±164 | 207.2±0.5 | 173.7±0.5 | 71.7±0.8 |
