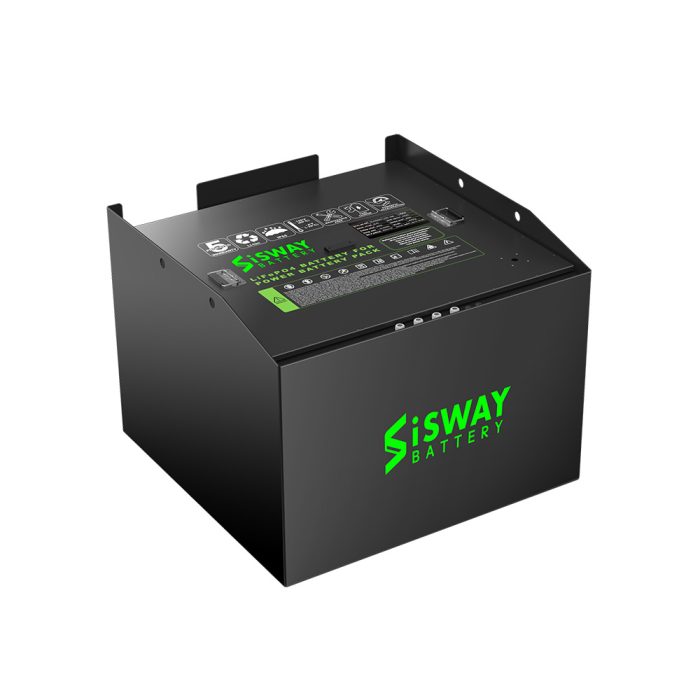

The 36V 420Ah lithium forklift battery is built for heavy-duty industrial use, offering a 23.5kWh capacity and stable, reliable power. Using LiFePO4 cells, it features an advanced BMS, long cycle life, and strong discharge performance. Ideal for OEM, ODM, and distributors, it supports customization and delivers long-lasting, efficient performance.
【Intelligent Management】 Built-in Battery Management System (BMS) and remote monitoring for safety and convenience.
Product | Forklift Lithium Battery | |||
Voltage | 24V 36V 48V 72V 96V (optional) | |||
Capacity | 210Ah | 315Ah | 460Ah | 560Ah |
Discharge current | 200A | 300A | 300A | 300A |
Charging current | 100A | 150A | 200A | 200A |
Total energy | 5.38kWh | 16.13kWh | 23.56kWh | 44.8kWh |
Weight | 50kg | 100kg | 850kg | 1300kg |
Certification | CE, UL, ISO 9001, ROHS, FCC, MSDS certification | |||
Cycle life | 4000+ Times | |||
Warranty | 5 Years | |||
Charger | Built-in waterproof charger (optional) | |||
Optional functions | Temperature monitoring, communication (CAN/485), overcharge protection, over-discharge protection, and alarm function.(optional) | |||
Application | Electric Counterbalance Forklift, Electric Pallet Jack, Electric Stackers, Electric Order Picker, Narrow Aisle Forklift, Telescopic Handler, Electric Tow Tractor. | |||
| Attribute | Details |
|---|---|
| Product Name | Forklift Lithium Battery |
| Model Number | SWAY-F7 |
| Brand Name | I-SWAY |
| Weight | 850 kg |
| Place of Origin | Guangdong, China |
| Type | LiFePO4 Grade A Cell |
| Applications | Electric Forklift, Pallet Truck, Reach Truck, Pallet Stacker, EVs, EPS |
| Voltage Options | 24V / 36V / 48V / 72V / 80V / 96V |
| Capacity Options | 100Ah / 210Ah / 315Ah / 460Ah / 560Ah |
| Charge Current | 200A |
| Continuous Discharge | 300A |
| Peak Current | 450A (10 seconds) |
| Cycle Life | 4000+ Times |
| Warranty | 5 Years |
| Selling Units | Single item |
|---|---|
| Package Size (cm) | 122.8 x 34.7 x 78.4 |
| Gross Weight | 850 kg |
| Quantity (pieces) | 1 – 2 | 3 – 100 | 101 – 1000 | > 1000 |
| Lead time (days) | 7 | 20 | 30 | To be negotiated |
What forklift models use this battery?
Forklift models such as the Toyota 8FB series and Hyster J2.0–3.0XN can be configured to work with 36V 420Ah lithium batteries, delivering extended runtime and enhanced energy efficiency for warehouse and light industrial operations.
How does it compare to lead-acid?
Compared to lead-acid, this lithium battery offers 3x longer lifespan, 2–3x faster charging, lighter weight, and zero maintenance—no watering or equalization required.
What’s the typical charging time?
With a compatible fast charger, it typically takes 2 to 4 hours for a full charge.
How long does it last?
Up to 5,000 cycles at 80% DOD, translating to 8–10 years of use under proper conditions.
What safety features are included?
Includes an advanced Battery Management System (BMS), overcharge/discharge protection, thermal monitoring, and short-circuit prevention.
What maintenance is required?
Minimal maintenance—periodic inspection and terminal cleaning. No need for water top-ups or electrolyte checks like lead-acid batteries.
.
